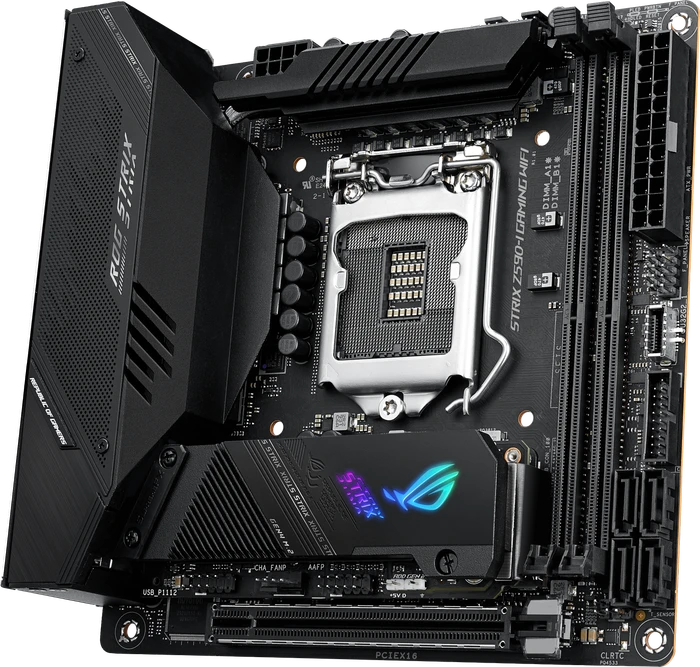

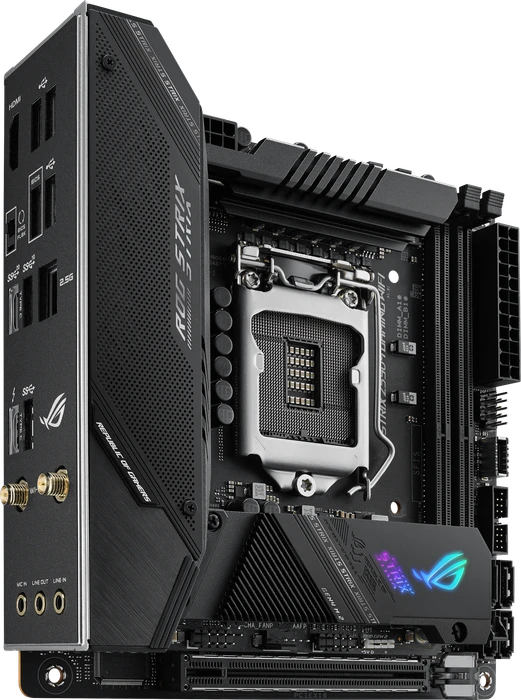

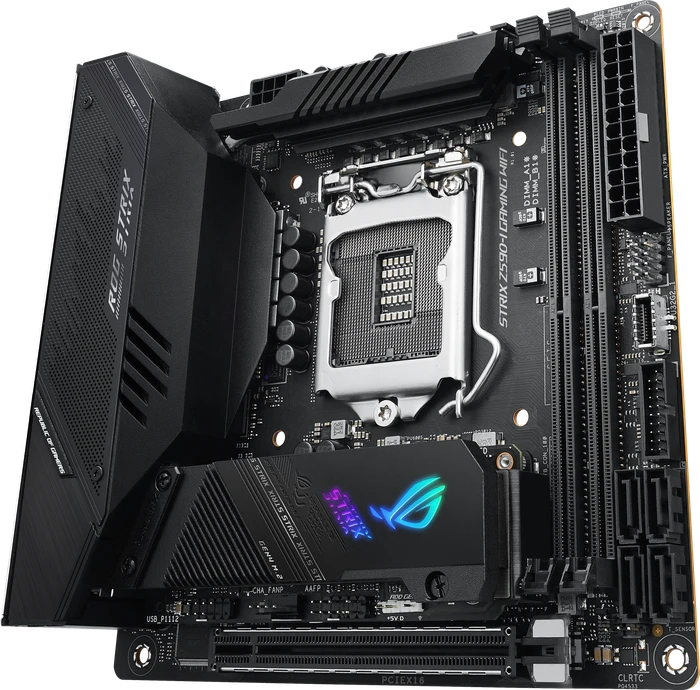

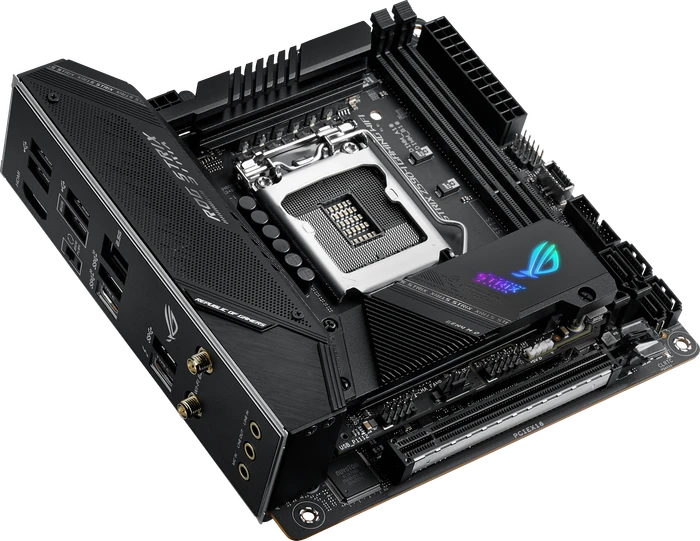

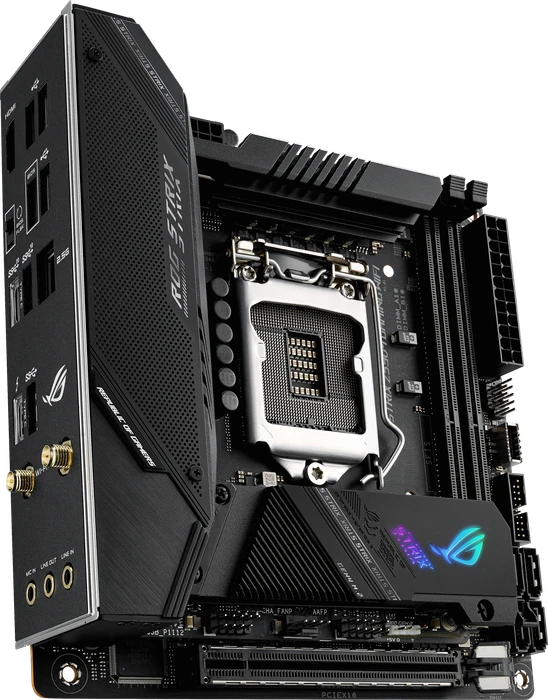

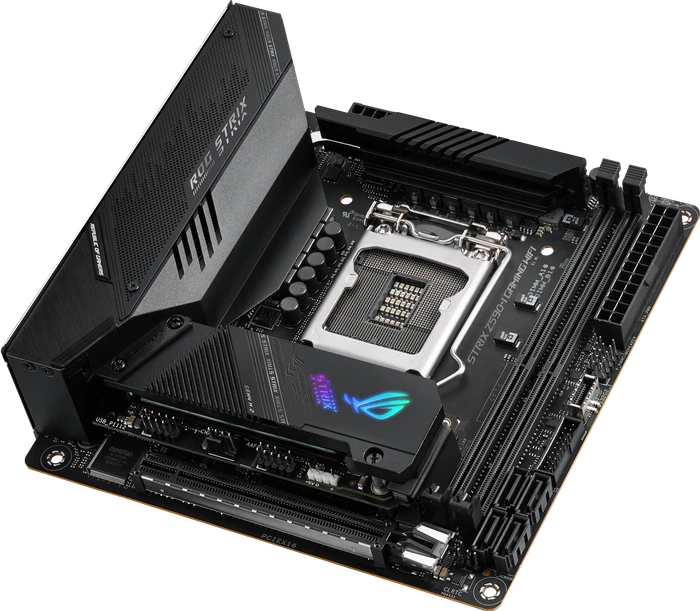

ASUS ROG Strix Z590-I Gaming WIFI (Intel 1200)

90MB1680-M0EAY0
Formfaktor
Mini-ITX
Sockel
Intel 1200 (LGA1200)
Chipsatz
Intel Z590
CPU-Kompatibilität
CPU-Kompatibilitätsliste
RAM
2x DDR4 DIMM-Slots, Dual Channel, max. 64GB UDIMM Non-ECC
RAM-Datenrate
max. DDR4-5133 OC
ECC-Unterstützung
nein
Anschlüsse extern
1x HDMI 2.0b (iGPU), 1x Thunderbolt 4 /​ USB4 mit DisplayPort 1.4 (40Gb/​s, PD-Out, Intel JHL8340, iGPU), 1x USB-C 3.2 (20Gb/​s, PCH), 1x USB-A 3.1 (10Gb/​s, PCH), 1x USB-A 3.0 (5Gb/​s), 4x USB-A 2.0 (480Mb/​s), 3x 3.5mm Klinke (Realtek ALC4080), 1x RJ-45 (2.5GBase-T, Intel I225-V), 2x Antennenanschluss RP-SMA
PCIe-Slots
1x PCIe 4.0 x16
M.2-Slots
1x M.2/​M-Key (PCIe 4.0 x4, 2280/​2260/​2242), 1x M.2/​M-Key (PCIe 3.0 x4/​SATA, 2280/​2260/​2242), 1x M.2/​E-Key (2230, belegt mit WiFi+BT-Modul)
Sonstige Schnittstellen
4x SATA 6Gb/s (Z590)
Anschlüsse intern - USB
1x USB 3.1 Header Key-A (10Gb/​s, 1x USB-C), 1x USB 3.0 Header 20-Pin (5Gb/​s, 2x USB-A), 1x USB 2.0 Header 9-Pin (480Mb/​s, 2x USB-A)
Anbieter aus:
Letztes Preisupdate: Filter zurücksetzen
Anbieter
Händlerbewertung
Verfügbarkeit / Versandkosten*
Produktbezeichnung des Händlers
€ 1310,98
VISA MasterCard American Express

Dieser Händler hat keine gültigen Bewertungen

Händler bewerten!
Auf Lager
Kreditkarte, Lastschrift
GRATISVERSAND.

ASUS ROG STRIX Z590-I GAMING WIFI
ROG Strix Z590-I Gaming WiFi 6E LGA 1200 (Intel 11th/10th Gen) mini-ITX gaming motherboard (PCIe 4.0, 8+2 power stages,Thunderbolt 4 Onboard,2.5 Gb LAN, USB 3.2 Gen 2 front panel Type-C,2x M.2 slots)
Preis vom:
(Preis kann jetzt höher sein!)
Formfaktor
Mini-ITX
Sockel
Intel 1200 (LGA1200)
Chipsatz
Intel Z590
CPU-Kompatibilität
CPU-Kompatibilitätsliste
RAM
2x DDR4 DIMM-Slots, Dual Channel, max. 64GB UDIMM Non-ECC
RAM-Datenrate
max. DDR4-5133 OC
ECC-Unterstützung
nein

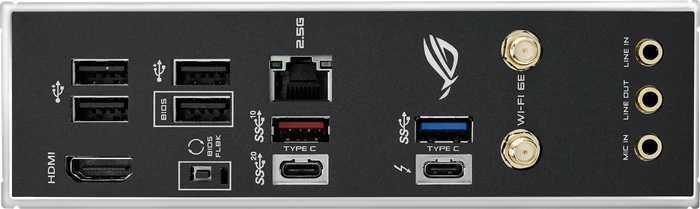

Anschlüsse extern
1x HDMI 2.0b (iGPU), 1x Thunderbolt 4 /​ USB4 mit DisplayPort 1.4 (40Gb/​s, PD-Out, Intel JHL8340, iGPU), 1x USB-C 3.2 (20Gb/​s, PCH), 1x USB-A 3.1 (10Gb/​s, PCH), 1x USB-A 3.0 (5Gb/​s), 4x USB-A 2.0 (480Mb/​s), 3x 3.5mm Klinke (Realtek ALC4080), 1x RJ-45 (2.5GBase-T, Intel I225-V), 2x Antennenanschluss RP-SMA
PCIe-Slots
1x PCIe 4.0 x16
M.2-Slots
1x M.2/​M-Key (PCIe 4.0 x4, 2280/​2260/​2242), 1x M.2/​M-Key (PCIe 3.0 x4/​SATA, 2280/​2260/​2242), 1x M.2/​E-Key (2230, belegt mit WiFi+BT-Modul)
Sonstige Schnittstellen
4x SATA 6Gb/s (Z590)
Anschlüsse intern - USB
1x USB 3.1 Header Key-A (10Gb/​s, 1x USB-C), 1x USB 3.0 Header 20-Pin (5Gb/​s, 2x USB-A), 1x USB 2.0 Header 9-Pin (480Mb/​s, 2x USB-A)
Anschlüsse intern - sonstige
1x Speaker Header
Anschlüsse intern - Kühlung
1x CPU-Lüfter 4-Pin PWM, 1x Lüfter 4-Pin PWM, 1x AIO-Pumpe 4-Pin PWM, 1x Thermal-Sensor Header
Anschlüsse intern - Stromversorgung
1x 24-Pin ATX, 1x 8-Pin EPS12V
Anschlüsse intern - Beleuchtung
1x 4-Pin RGB (+12V/​G/​R/​B, max. 3A), 1x 3-Pin ARGB (+5V/​DATA/​GND, max. 3A, ASUS Gen2)
Buttons/Switches
USB BIOS Flashback (extern)
Audio
Realtek ALC4080, AMP (Savitech SV3H712), DTS Sound Unbound
Netzwerk
Intel I225-V (2.5Gb/​s)
Grafik
iGPU
RAID-Level
0/​1/​5/​10 (Z590)

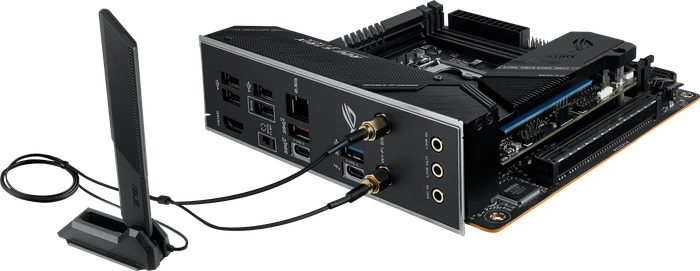

Wireless
Wi-Fi 6E (WLAN 802.11a/​b/​g/​n/​ac/​ax, 2x2, Intel AX210), Bluetooth 5.3
VRM-Design
9+2, 11 virtuelle CPU-Phasen (9+2)
MOSFETs VCORE
9x
MOSFETs SOC/VCCGT
2x
Beleuchtung
RGB, 2 Zonen (Klinke-Buchsen, M.2-Kühler)
BIOS
1x 32MB (256Mb)
Besonderheiten
Audio+solid capacitors, Diagnostic LED (LED-Indikatoren), I/​O-Blende integriert, 2x M.2-Passivkühler
Garantie
3 Jahre
USB-Schreibweise
Link
Letztes Preisupdate
Gelistet seit
28.01.2021, 10:13
Laden ...

1 Bewertung für ASUS ROG Strix Z590-I Gaming WIFI (Intel 1200)

Teilen Sie uns Ihre Meinung zu ASUS ROG Strix Z590-I Gaming WIFI (Intel 1200) mit oder lesen Sie die Bewertungen unserer Mitglieder, Experten und anderer Websites zu dessen Varianten.
Laden ...
  • deutsch
    gamezoom.net: ASUS ROG Strix Z590-I Gaming WIFI - Test/Review
    Testbewertung:
    Testbewertung: 90
    Originalwertung: 9/10

    Das neue ASUS ROG Strix Z590-I Gaming WIFI zeigt eindrucksvoll, dass auch ein Mini-ITX-Mainboard überzeugen kann.

  • englisch
    techpowerup.com: ASUS ROG STRIX Z590-I Gaming WiFi Review (translate)

    The ASUS ROG STRIX Z590-I Gaming WiFi is an exemplary premium ITX Z590 board. With WiFi 6E, 2.5 Gb/s LAN, and an integrated I/O shield, as well as both M.2 slots cleverly located on the front of the board and lots of storage connectivity, all the feature boxes are checked. When it comes to looks, the ASUS ROG STRIX Z590-I Gaming WiFi is classically ASUS by featuring an excellent RGB implementation and a design that is neutral enough to make for easy parts matching.

  • englisch
    overclock3d.net: ASUS ROG Strix Z590-I Gaming WiFi Review (translate)

    Pricing sees the Strix Z590-I in the middle of the pack, and that's to be expected considering how much has to be trimmed to squeeze all the Z590 features on to a PCB that would fit in the palm of your hand. What is surprising, beyond the performance, is how much of the new feature set the Strix ITX manages to have. PCI Express 4.0 slot, PCIe 4.0 M.2 NVMe support and even Thunderbolt 4 is all present and correct. It runs our Core i9-11900K - a CPU that is absolute overkill for a motherboard in this format - as quick as any other and, surprisingly, cooler than most too. Maybe paradoxically the reduced power phases meant that the Rocket Lake flagship processor ran a little cooler and thus the Adaptive Boost Technology could keep it running faster for longer. Whatever the case if you're worried that the ITX format is going to cripple the performance of your new system then fear not, the ROG Strix Z590-I is a beast. Clearly you have to make some connectivity concessions to achieve an ITX footprint, and the Strix Z590-I Gaming WiFi is no exception. However, like the TUF it has all the headline features present and correct, so you're getting enough to run a blazing gaming system should you so choose. The ASUS ROG Strix Z590-I Gaming WiFi is an affordable, high performance, total surprise packet and puts a smile on our face every time we think of it. It wins the OC3D Performance Award.

  • englisch
    eteknix.com: ASUS ROG STRIX Z590-I GAMING WIFI Motherboard Review (translate)

    The main thing to think of here is are a couple of extra features worth the almost £70 extra over the Gigabyte Z590I AORUS ULTRA? Or, do you just have to have a ROG ITX board? Well, if you can justify the price I would have absolutely no problem recommending this board as it looks amazing and offers some of the best performance we have seen so far from Z590!
